How Much Area Does A Fire Sprinkler Cover

Fire sprinkler systems are a crucial part of fire protection strategies, designed to control or extinguish fires before they spread and cause significant damage. One of the essential factors to consider when designing or installing a fire sprinkler system is the coverage area of each sprinkler head. Understanding how much area a fire sprinkler covers helps ensure optimal fire protection and compliance with local safety regulations. This article will delve into the technical aspects of fire sprinkler coverage, exploring how coverage is determined, the factors influencing it, and the best practices for ensuring adequate protection across different types of spaces.

How Fire Sprinklers Work

Before diving into the specifics of coverage, it's essential to understand the basic function of a fire sprinkler. Fire sprinklers are part of a water-based fire suppression system that activates when a fire is detected. Each sprinkler head contains a heat-sensitive element—either a glass bulb or a fusible link—that responds to high temperatures by releasing water to suppress the fire.

Fire sprinklers are designed to target the fire's source, controlling it until firefighters arrive or extinguishing it altogether in some cases. The primary purpose of the system is to control the fire long enough to prevent it from spreading, which minimizes property damage and saves lives.

Factors Determining Fire Sprinkler Coverage

Several factors determine the coverage area of a fire sprinkler, including the type of sprinkler head, water pressure, the layout of the space, and fire codes or building regulations. These factors work together to ensure that each sprinkler head effectively controls a designated area.

1. Types of Fire Sprinklers

The type of fire sprinkler head used in a system significantly affects its coverage area. Sprinklers are categorized into different types based on their design, application, and fire protection requirements. Below are the most common types of fire sprinkler heads and how they impact coverage:

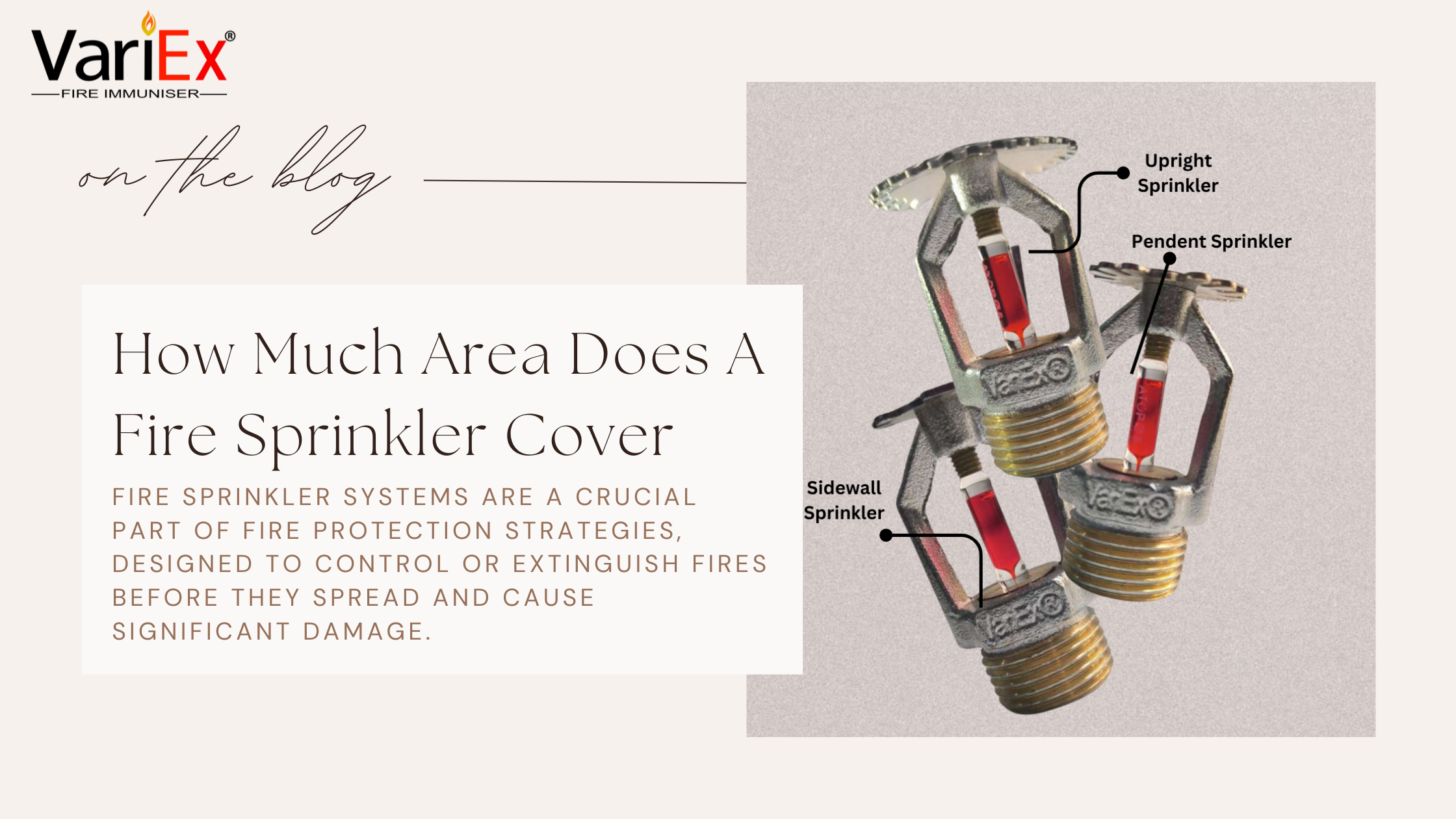

• Standard Spray Sprinklers (Pendent, Upright, and Sidewall): These are the most common types used in residential, commercial, and industrial settings. Pendent and upright sprinklers are mounted either from the ceiling (pendent) or in an upward position (upright), spraying water downward in a circular pattern. Sidewall sprinklers are mounted on walls and spray water outward and downward in a semicircular pattern. The coverage area of these sprinklers varies based on factors like the ceiling height, room size, and water pressure.
• Concealed Sprinklers: These sprinklers are designed to be hidden until activated, often used in spaces where aesthetics are a priority. Their coverage area is similar to that of standard spray sprinklers, but their activation may differ slightly due to the concealment mechanism.
• Dry Sprinklers: Dry sprinklers are used in environments where freezing temperatures could cause water in the pipes to freeze. These sprinklers have longer coverage ranges because they are designed to cover larger spaces like garages or warehouses. Their coverage also depends on temperature ratings, as they need to perform effectively in both cold and warm conditions.
• Extended Coverage Sprinklers: As the name suggests, these sprinklers are designed to cover larger areas than standard sprinkler heads. They are often used in buildings where fewer sprinkler heads are desired to reduce installation costs. These sprinklers are highly effective, but the distance between sprinkler heads must be carefully calculated to ensure they provide adequate coverage.

2. Water Pressure and Flow Rate

Water pressure is another critical factor influencing the coverage area of a fire sprinkler. For a sprinkler to provide adequate protection, it must have enough water pressure to disperse water across the designated area. Low water pressure can result in insufficient water distribution, reducing the effectiveness of the system.

The flow rate, or the amount of water the sprinkler can discharge per minute, also affects coverage. Higher flow rates enable sprinklers to cover larger areas more effectively. The flow rate is influenced by the design of the sprinkler head, water supply capacity, and the system's overall configuration.

For example, a typical residential fire sprinkler may have a flow rate of 15-20 gallons per minute (GPM), while industrial or commercial sprinklers may require flow rates as high as 100 GPM or more. This difference is crucial in determining how much area a single sprinkler can cover in various environments.

3. Room Layout and Obstructions

The layout of the room or space being protected also plays a significant role in determining fire sprinkler coverage. Sprinklers are designed to distribute water uniformly across an area, but obstacles such as walls, beams, and large furniture can disrupt this flow and reduce coverage.

For example, a sprinkler system installed in an open-plan office will have fewer obstructions than one in a warehouse filled with high shelving or large machinery. In environments with many obstacles, additional sprinkler heads may be needed to ensure full coverage.

It's also important to consider the ceiling height. As the ceiling height increases, the sprinkler's ability to deliver water effectively to the fire source may decrease. Therefore, higher ceilings often require specialized sprinklers, such as high-piled storage sprinklers or extended coverage models, designed for these conditions.

4. Building Codes and Fire Safety Regulations

Fire sprinkler coverage must comply with local fire codes and building regulations. These codes vary depending on the type of building (residential, commercial, or industrial), its occupancy, and the fire risks associated with the property.

Fire codes specify the maximum allowable distance between sprinkler heads, the coverage area per sprinkler, and other design considerations. For example, the National Fire Protection Association (NFPA) sets guidelines on sprinkler installation in the United States through its NFPA 13 standard. This standard defines the following:

• The maximum allowable distance between sprinkler heads
• The maximum area that a single sprinkler can cover
• Requirements for different types of spaces, such as light, ordinary, or extra-hazard occupancies

It is essential for any fire sprinkler installation to meet the fire codes and standards of the jurisdiction in which the building is located to ensure adequate fire protection and legal compliance.

5. Fire Hazard Classification

The fire hazard classification of a space also impacts the coverage area of fire sprinklers. Fire hazards are classified based on the types of materials stored or used in the building and the potential fire risks. The three primary fire hazard classifications are:

• Light Hazard: Spaces with a low risk of fire, such as offices, schools, and residential buildings, fall into this category. In these areas, sprinklers generally have a larger coverage area because the fire risk is lower, and fires are expected to grow more slowly.
• Ordinary Hazard: This classification includes spaces like retail stores, parking garages, and restaurants. These environments have a moderate fire risk, and sprinklers are typically spaced closer together to ensure quicker fire suppression.
• Extra Hazard: Facilities such as warehouses, factories, and industrial plants fall into this category due to the presence of flammable materials, machinery, or chemicals. In extra-hazard spaces, fire sprinklers have a smaller coverage area per head because fires in these environments can spread rapidly, requiring more concentrated suppression efforts.

Determining the Coverage Area of a Fire Sprinkler

Now that we’ve explored the factors influencing fire sprinkler coverage, we can discuss how to calculate the area a single fire sprinkler can cover. Fire sprinkler coverage is measured in terms of the maximum area that a single sprinkler head can protect, typically expressed in square feet.

NFPA Guidelines for Sprinkler Coverage

The NFPA 13 standard provides detailed guidelines on how much area a fire sprinkler can cover. According to NFPA 13, the coverage area of a sprinkler is based on several key factors, including the sprinkler type, the hazard classification of the space, and the layout of the room. Below are general guidelines for determining sprinkler coverage in different environments:

• Light Hazard Areas: For light hazard areas, such as residential or office buildings, the NFPA 13 standard allows a maximum coverage area of 225 square feet per sprinkler. The distance between sprinklers can be up to 15 feet. However, this can vary slightly depending on the specific room layout and obstructions.
• Ordinary Hazard Areas: In spaces classified as ordinary hazards, such as retail stores or restaurants, each sprinkler head can cover up to 130 square feet. The distance between sprinklers in this classification should not exceed 12 feet.
• Extra Hazard Areas: For high-risk spaces such as warehouses or factories, sprinklers typically cover a smaller area to ensure rapid fire suppression. The maximum coverage in these areas is 100 square feet per sprinkler, with the distance between sprinklers being no more than 10 feet.

Extended Coverage Sprinklers

As mentioned earlier, extended coverage sprinklers are designed to cover larger areas than standard sprinklers. These sprinklers are used in spaces where fewer sprinkler heads are desired, or the area is too large for standard sprinklers. Extended coverage sprinklers can cover areas ranging from 196 to 400 square feet, depending on the sprinkler model and fire risk classification of the space.

For example, an extended coverage sprinkler rated for light hazard areas may cover up to 400 square feet, while one rated for ordinary hazard areas may cover 225 to 300 square feet. It's important to note that these sprinklers require higher water pressure and flow rates to ensure adequate water distribution across the larger area.

Spacing and Placement Considerations

Proper spacing of fire sprinklers is critical to ensuring full coverage. Fire sprinklers must be placed in such a way that their water distribution patterns overlap slightly, preventing any gaps in protection. The following are general rules of thumb for sprinkler placement:

• Ceiling Height: The higher the ceiling, the more challenging it is for the sprinkler to distribute water effectively. As a result, higher ceilings often require sprinklers with a wider spray pattern or extended coverage capabilities.
• Walls and Corners: Sprinklers should be installed at appropriate distances from walls and corners to ensure full coverage. If a sprinkler is placed too close to a wall, it may not adequately cover the area directly below or adjacent to the wall.
• Obstructions: Avoid placing sprinklers near objects that could block water flow, such as lighting fixtures, ceiling fans, or large structural beams. In areas with many obstructions, additional sprinklers may be needed to ensure full coverage.

Special Applications and Environments

Certain environments require specialized fire sprinkler systems designed to meet unique challenges. For example, warehouses with high-piled storage or rack systems often use in-rack sprinklers, which are installed directly within the storage racks to provide targeted suppression. Similarly, residential fire sprinkler systems are typically designed with lower water pressure requirements and a more compact coverage area compared to industrial systems.

In environments where freezing temperatures are a concern, dry pipe sprinkler systems are used. These systems keep the water supply in a dry state until the system is activated, preventing freezing in the pipes.

Conclusion

Understanding how much area a fire sprinkler can cover is crucial for designing an effective fire protection system. Factors such as sprinkler type, water pressure, room layout, fire hazard classification, and local fire codes all play a role in determining the coverage area. By following industry standards like NFPA 13 and working with fire protection professionals, you can ensure that your building is adequately protected against the threat of fire.

Proper fire sprinkler installation and maintenance not only protect lives and property but also provide peace of mind, knowing that the system will function as intended when needed most. Whether you're designing a system for a residential building, commercial property, or industrial facility, it's essential to consider all these factors to ensure optimal fire protection.
