How To Install Fire Sprinkler System

Installing a fire sprinkler system is a complex process that requires careful planning, adherence to local building codes, and professional expertise. Fire sprinklers are essential in protecting buildings from fire hazards, and they significantly reduce property damage and the risk of loss of life. This comprehensive guide will walk you through the process of installing a fire sprinkler system, covering key steps, equipment, and considerations in detail.

• Understanding Fire Sprinkler Systems
  • Sprinkler Heads, Piping, Water Supply, Valves, Alarms
• Planning the Installation
  • Fire Risk Assessment
  • Choosing the Sprinkler System
  • Designing Layout
  • Permits and Approvals
• Installation Process
  • Piping and Sprinkler Heads
  • Control Valves and Alarms
  • Water Supply Connection
  • System Testing
  • Occupant and Staff Training
• Maintenance and Inspection
  • Monthly, Quarterly, Annual, and Five-Year Inspections
• Conclusion


Understanding Fire Sprinkler Systems

Before diving into the installation process, it’s important to understand the basic components of a fire sprinkler system. These include:

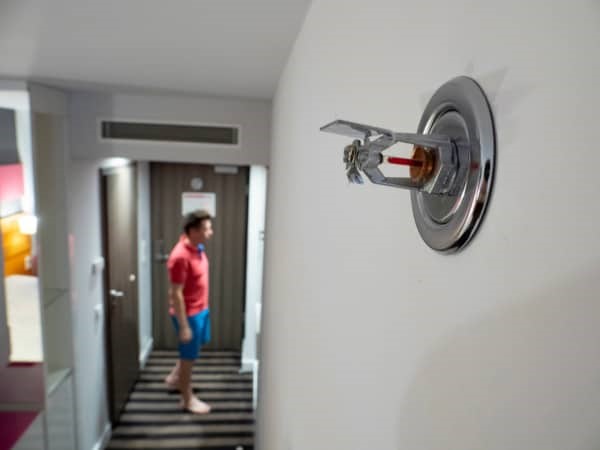

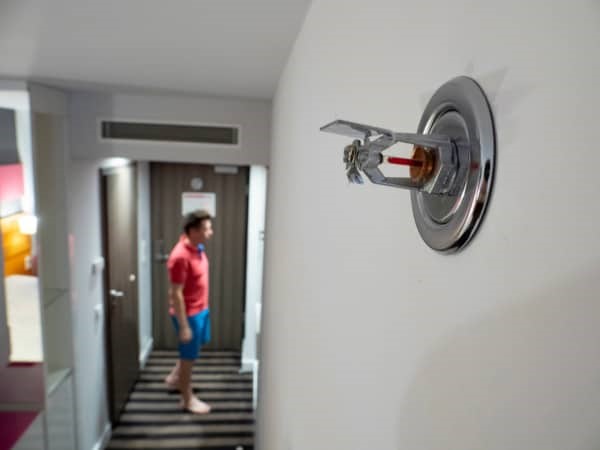

1. Sprinkler Heads: These are the nozzles that disperse water when a fire is detected. Each head is heat-sensitive and will activate when the surrounding temperature reaches a certain threshold.
2. Piping System: Pipes carry water from the supply source to the sprinkler heads. They are typically made of metal or durable plastic and must be properly sized to ensure adequate water flow.
3. Water Supply: The water supply can come from a municipal source, a dedicated water tank, or a combination of both. In some cases, pumps may be needed to maintain sufficient pressure.
4. Control Valves: These regulate water flow and ensure that the system operates correctly. They include shut-off valves and check valves that prevent water from flowing backward.
5. Alarm and Monitoring Systems: Modern sprinkler systems are often integrated with fire alarm systems. When a sprinkler activates, the alarm system can notify occupants and emergency services.

Planning the Installation

The first step in installing a fire sprinkler system is careful planning. This involves understanding the type of building and occupancy, identifying risks, and complying with relevant regulations and standards.

1. Conduct a Fire Risk Assessment

A thorough fire risk assessment should be performed to identify potential hazards and areas that are particularly vulnerable to fire. This assessment will help in determining the type of sprinkler system that is best suited for the building. Factors to consider include:

• The layout and size of the building.
• The type of materials stored or used in the building.
• The number of occupants and their mobility (e.g., in hospitals or nursing homes).
• Local fire safety codes and insurance requirements.

2. Choose the Right Sprinkler System

There are several types of sprinkler systems, each designed for different environments and fire risks. The most common types include:

• Wet Pipe Systems: These are the most common and are used in buildings where freezing temperatures are not an issue. The pipes are filled with water at all times, and when a sprinkler head is triggered, water is immediately discharged.
• Dry Pipe Systems: In areas where freezing is a concern, dry pipe systems are used. The pipes are filled with pressurized air or nitrogen, and water is only released when the system detects a fire.
• Pre-action Systems: These systems are similar to dry pipe systems but require two triggers to release water. They are typically used in places where accidental water discharge could cause significant damage, such as data centers or museums.
• Deluge Systems: In high-hazard areas, deluge systems are used. All sprinkler heads are open, and water is released over the entire area when the system is triggered.

3. Design the System Layout

Once the type of system has been chosen, the next step is to design the layout. This involves determining the location of the sprinkler heads, the routing of pipes, and the placement of control valves. Here are some key considerations:

• Sprinkler Head Placement: Sprinkler heads should be evenly distributed throughout the building, including in corridors, rooms, and storage areas. In general, they should be positioned about 15 feet apart, with additional heads placed in areas of high fire risk.
• Piping Routes: The piping should be designed to minimize friction losses and ensure adequate water pressure. In multi-story buildings, vertical risers will be needed to connect the piping on different floors.
• Control Valve Location: Control valves should be easily accessible and clearly labeled. They should be installed in a location where they can be quickly shut off in case of accidental discharge or maintenance.

4. Obtain Necessary Permits and Approvals

Before installation begins, you will need to obtain the necessary permits and approvals from local authorities. Fire sprinkler systems are subject to strict building codes and standards, such as the National Fire Protection Association (NFPA) standards in the United States. Your plans will need to be reviewed and approved by the local fire department or building inspector to ensure compliance.

Installation Process

The actual installation of the fire sprinkler system involves several key steps, including installing the piping, sprinkler heads, control valves, and alarms. Here’s a step-by-step breakdown of the process:

1. Install Piping

The first major task is to install the piping that will supply water to the sprinkler heads. The piping can be installed above ceilings or in walls, depending on the building’s design. The process typically follows these steps:

• Measure and Cut Pipes: Use a tape measure to determine the length of pipe needed for each section, then cut the pipes accordingly. Ensure that the cuts are clean and straight to prevent leaks.
• Install Hangers and Supports: Piping must be securely supported to prevent it from sagging or shifting. Hangers and brackets are used to anchor the pipes to walls or ceilings. Make sure to follow local building codes regarding the spacing of supports.
• Connect Pipes: Connect the pipes using the appropriate fittings, such as couplings, elbows, and tees. Ensure that all connections are watertight to prevent leaks.
• Test for Leaks: Before moving on, test the piping for leaks by pressurizing the system with water or air. Check all connections and joints for any signs of leakage.

2. Install Sprinkler Heads

Once the piping is in place, you can install the sprinkler heads. These are the most visible part of the system and need to be installed carefully to ensure proper coverage and operation. The process typically involves:

• Mark Locations: Using the system design plans, mark the locations where each sprinkler head will be installed. Make sure the spacing is accurate, and avoid placing heads too close to walls, beams, or other obstructions.
• Attach Sprinkler Heads to Pipes: Each sprinkler head is attached to the piping using a special fitting called a sprinkler drop or a pipe nipple. Make sure the heads are securely attached and positioned at the correct height and angle.
• Install Protective Covers: If the building is still under construction, it’s a good idea to install protective covers over the sprinkler heads to prevent damage from dust, debris, or accidental impacts.

3. Install Control Valves and Alarms

The control valves and alarm systems are critical components of the fire sprinkler system. They allow you to shut off the water supply in case of maintenance or an accidental discharge, and they trigger alarms in the event of a fire. The installation process includes:

• Main Control Valve: Install the main control valve near the water supply. This valve allows you to turn the system on or off and is typically located in a mechanical room or utility closet.
• Alarm Valve: The alarm valve is responsible for sending a signal to the fire alarm system when a sprinkler is activated. It is usually installed in the same area as the main control valve.
• Water Flow Switch: A water flow switch detects the movement of water in the pipes and sends a signal to the alarm system. It should be installed downstream of the alarm valve.
• Test Valves and Drains: Test valves and drains should be installed to allow for periodic testing and maintenance of the system. These valves enable you to release water from the system without triggering the sprinklers.

4. Connect to Water Supply

Once the piping, sprinkler heads, and control valves are in place, you can connect the system to the water supply. This may involve connecting to a municipal water line, installing a dedicated water tank, or setting up a pump system to ensure adequate pressure.

• Municipal Water Supply: If the building is connected to a municipal water supply, you will need to install a backflow prevention device to prevent contamination of the public water supply.
• Dedicated Water Tank: In buildings without a reliable water supply, a dedicated water tank may be needed. The tank should be large enough to supply water to the entire sprinkler system for at least 10-20 minutes, depending on local regulations.
• Pump Installation: If the water pressure is insufficient, a pump may be required to boost the pressure. The pump should be installed in a well-ventilated area, and a backup power source should be provided in case of a power outage.

5. Test the System

Once the installation is complete, the entire system must be thoroughly tested to ensure it operates correctly. Testing should be done in the presence of a fire inspector or other local authority to verify compliance with building codes. The tests include:

• Hydrostatic Pressure Test: This test involves pressurizing the system with water to check for leaks and ensure the pipes can withstand the required pressure.
• Flow Test: A flow test checks the water flow rate and pressure to ensure that the system will deliver enough water in the event of a fire.
• Alarm Test: The alarm system should be tested to make sure it activates when water flows through the system.

6. Train Occupants and Maintenance Personnel

Once the system is up and running, it’s important to train the building’s occupants and maintenance personnel on how to operate and maintain the system. This includes:

• System Operation: Show the occupants where the control valves and alarms are located, and explain how to shut off the system in case of an accidental discharge.
• Maintenance Procedures: Regular maintenance is critical to ensuring the long-term reliability of the sprinkler system. Maintenance personnel should be trained on how to inspect and test the system, as well as how to perform basic repairs.

Maintenance and Inspection

Fire sprinkler systems require regular maintenance and inspection to ensure they remain operational. The NFPA recommends the following maintenance schedule:

• Monthly: Check the control valves to ensure they are in the open position.
• Quarterly: Test the water flow switches and alarm systems to ensure they function correctly.
• Annually: Inspect all sprinkler heads, piping, and control valves for signs of damage or corrosion. Conduct a full system test to ensure proper operation.
• Every 5 Years: Perform a more thorough inspection of the piping and sprinkler heads to check for corrosion or obstructions.

Conclusion

Installing a fire sprinkler system is a complex but essential step in protecting your building and its occupants from fire hazards. By following the steps outlined in this guide, you can ensure that your system is installed correctly and meets all relevant safety standards. Regular maintenance and inspections are also critical to keeping the system in good working order. While some aspects of the installation process can be handled by a skilled DIYer, it’s generally recommended to hire a professional fire sprinkler installer to ensure compliance with local building codes and safety regulations.
