How Fire Sprinklers Work

Fire sprinklers are a critical component of fire protection systems, designed to control and extinguish fires automatically before they can cause significant damage or loss of life. Their operation is rooted in simple but effective principles of fire detection, containment, and suppression. This guide delves into how fire sprinklers work, covering their history, types, components, operation mechanism, and their crucial role in fire safety.

History of Fire Sprinklers

The concept of automatic fire suppression has been around since the early 19th century. The first successful automatic sprinkler system was developed by Henry S. Parmalee in 1874. Parmalee, a piano maker, was concerned about protecting his factory from fires. His design involved a network of water pipes connected to sprinklers with heat-sensitive elements. This early system laid the foundation for modern fire sprinkler systems, which have evolved significantly over the past century.

The Basics of Fire Sprinkler Systems

Purpose and Function

The primary purpose of fire sprinkler systems is to control or extinguish a fire at its early stages, minimizing damage to property and reducing the risk of injury or death. These systems are designed to activate automatically when a fire is detected, spraying water directly onto the flames and surrounding areas to cool the fire, limit its spread, and reduce heat and smoke production.

Common Myths

One common misconception about fire sprinklers is that they all activate simultaneously when a fire is detected. In reality, each sprinkler head operates independently, and only the sprinklers closest to the fire will activate. This targeted approach prevents unnecessary water damage in areas unaffected by the fire.

Components of a Fire Sprinkler System

Fire sprinkler systems are composed of several key components, each playing a crucial role in the system’s overall function.

Sprinkler Heads

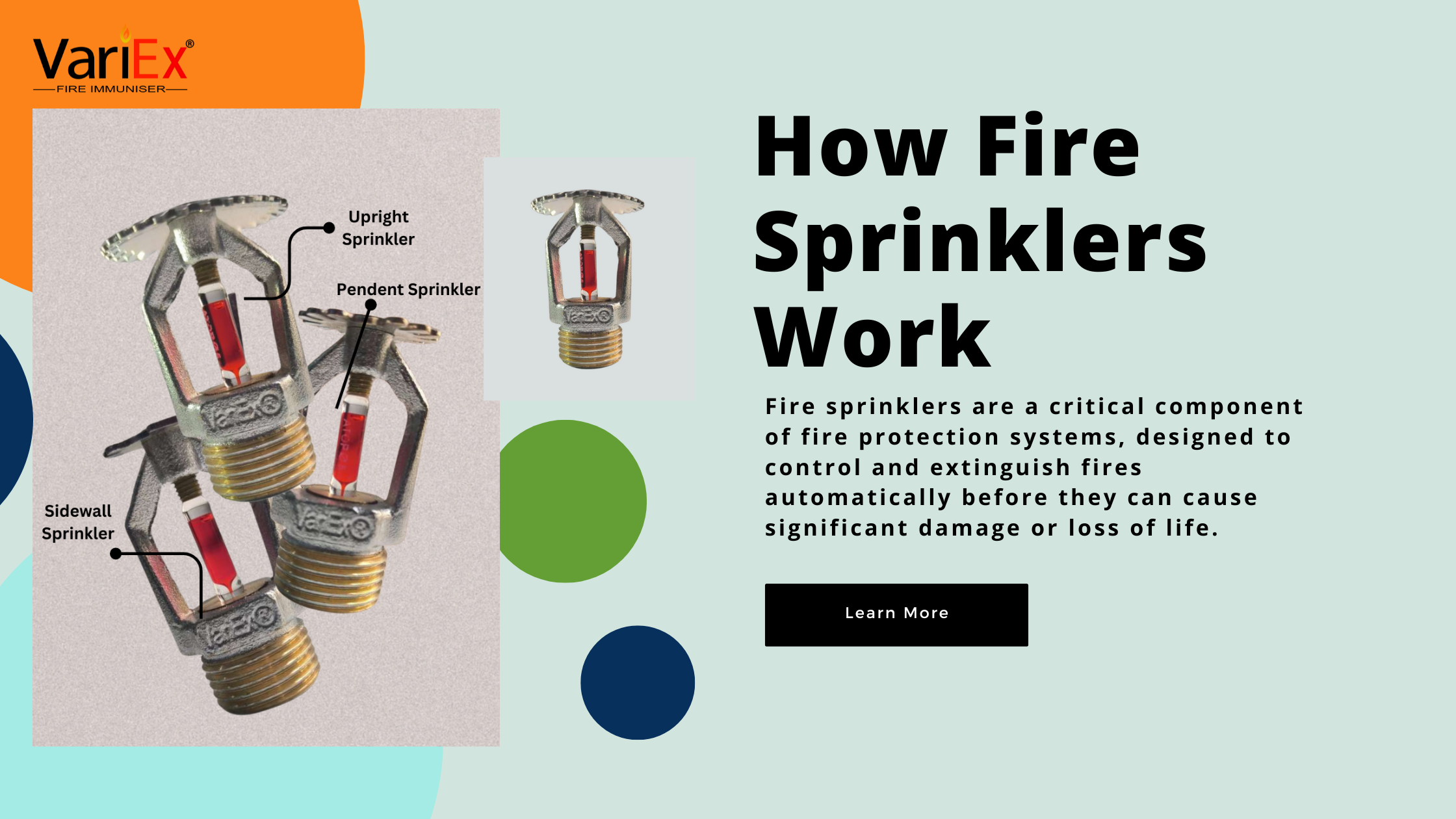

Sprinkler heads are the most visible part of the system. These devices are designed to discharge water when a fire is detected. Sprinkler heads come in various designs, including pendant, upright, and sidewall types, each suited for different installation scenarios.

Piping System

The piping system is responsible for delivering water to the sprinkler heads. Pipes are usually made of steel or copper and are arranged in a network that ensures water can reach any part of the building quickly.

Control Valves

Control valves regulate the flow of water in the system. The main control valve is typically located near the building’s water supply and must be open for the sprinkler system to function. There are also isolation valves that allow sections of the system to be shut off for maintenance or in case of a false alarm.

Alarm Valve

The alarm valve is a critical component that triggers the fire alarm when the system is activated. This valve senses a drop in water pressure caused by the activation of a sprinkler head and sends a signal to the fire alarm system.

Pressure Gauge

The pressure gauge monitors the water pressure in the system, ensuring that it is within the required range for the sprinklers to operate effectively.

Water Supply

The water supply is the source of water for the sprinkler system. It can come from a municipal water supply, a dedicated water tank, or a combination of both. In some cases, systems may also have a secondary water source, such as a fire pump, to ensure a sufficient water supply in the event of a fire.

Types of Fire Sprinkler Systems

Fire sprinkler systems can be classified into several types, each designed for specific applications and environments.

Wet Pipe Systems

Wet pipe systems are the most common type of fire sprinkler system. In these systems, the pipes are filled with water at all times. When a sprinkler head is activated, water is immediately discharged onto the fire. Wet pipe systems are simple, reliable, and ideal for buildings where temperatures are unlikely to drop below freezing.

Dry Pipe Systems

Dry pipe systems are used in environments where freezing temperatures are a concern, such as unheated warehouses or outdoor areas. In these systems, the pipes are filled with pressurized air or nitrogen rather than water. When a sprinkler head activates, the air pressure drops, allowing water to flow into the pipes and out through the sprinkler head.

Deluge Systems

Deluge systems are designed for high-hazard environments, such as chemical plants or aircraft hangars. In these systems, the sprinkler heads are open, and the pipes are dry until the system is activated. When a fire is detected, a deluge valve opens, allowing water to flood the entire system and discharge from all sprinkler heads simultaneously. Deluge systems are ideal for rapidly spreading fires or those involving flammable liquids.

Pre-Action Systems

Pre-action systems combine elements of both wet and dry pipe systems. The pipes are filled with air, and water is only allowed into the system when both a heat-sensitive element in the sprinkler head and a separate fire detection system are triggered. Pre-action systems are commonly used in environments where accidental water discharge could cause significant damage, such as data centers or libraries.

Foam Water Systems

Foam water systems are specialized systems used in areas with high flammability risks, such as aircraft hangars or chemical storage facilities. These systems mix water with a foam concentrate to create a foam solution that smothers the fire, reducing the oxygen supply and preventing re-ignition.

How Fire Sprinkler Systems Detect and Suppress Fires

Fire Detection

Fire sprinkler systems detect fires through the heat-sensitive elements in the sprinkler heads. These elements are usually made of either a glass bulb filled with a glycerin-based liquid or a fusible metal link. When the ambient temperature around the sprinkler head reaches a predetermined level, the heat-sensitive element breaks, triggering the sprinkler.

Glass Bulb Mechanism: The glass bulb contains a liquid that expands when heated. At a certain temperature, the liquid expands enough to shatter the glass, causing the sprinkler to activate.

Fusible Link Mechanism: The fusible link is a metal alloy designed to melt at a specific temperature. When the link melts, it releases a cap that opens the sprinkler head, allowing water to flow.

Water Discharge

Once a sprinkler head is activated, water is discharged from the system’s piping network. The sprinkler head is designed to disperse water in a specific pattern, covering a wide area and ensuring the fire is quickly cooled and extinguished.

Limiting Fire Spread

The primary goal of a fire sprinkler system is to limit the spread of a fire. By discharging water directly onto the flames and surrounding areas, the system reduces the fire’s intensity and prevents it from spreading to other parts of the building. This rapid response can be crucial in containing the fire until firefighters arrive.

Components of a Fire Sprinkler System

Fire Sprinkler System Design and Installation

System Design Considerations

The design of a fire sprinkler system must take into account several factors, including the type of building, the potential fire hazards, and local fire codes and regulations. Key considerations include:

• Building Occupancy: The use of the building (e.g., residential, commercial, industrial) will determine the type and design of the sprinkler system.
• Fire Load: The amount and type of combustible materials present in the building influence the system’s design, including the size and number of sprinkler heads.
• Water Supply: The availability and pressure of the water supply are critical factors in system design. In some cases, a fire pump may be needed to ensure adequate water flow.
• Coverage Area: The placement of sprinkler heads must ensure that all areas of the building are adequately covered.

Installation Standards

Fire sprinkler systems must be installed in accordance with national and local fire codes. In the United States, the National Fire Protection Association (NFPA) sets the standards for the installation of fire sprinkler systems (NFPA 13). These standards cover everything from the selection of materials to the placement of sprinkler heads and the design of the piping system.

Maintenance and Testing

Regular maintenance and testing are essential to ensure the fire sprinkler system operates correctly in an emergency. This includes:

• Inspecting Sprinkler Heads: Ensuring they are not obstructed or damaged.
• Testing Alarm Systems: Confirming that the alarm valve and other notification devices are functioning properly.
• Checking Water Supply: Verifying that the water supply and pressure are adequate for the system’s needs.
• Conducting Regular Drills: Simulating fire scenarios to ensure the system responds as expected.

The Role of Fire Sprinkler Systems in Fire Safety

Reducing Fire Damage

Fire sprinkler systems play a critical role in reducing fire damage. By controlling or extinguishing a fire in its early stages, these systems prevent the fire from spreading and causing extensive damage to the building and its contents.

Protecting Lives

One of the most significant benefits of fire sprinkler systems is their ability to protect lives. By containing fires quickly, sprinklers reduce the risk of injury or death from smoke inhalation, burns, and structural collapse.

Supporting Firefighting Efforts

Fire sprinklers also support firefighting efforts by controlling the fire until firefighters arrive. This can significantly reduce the workload for firefighters and increase the chances of a successful rescue operation.

Compliance with Regulations

In many regions, fire sprinkler systems are required by law in certain types of buildings, such as high-rise apartments, hospitals, and schools. Compliance with these regulations is not only a legal requirement but also a crucial aspect of ensuring the safety of building occupants.

Innovations and Future Trends in Fire Sprinkler Technology

Smart Sprinkler Systems

With the advent of smart technology, fire sprinkler systems are becoming more advanced. Smart sprinklers can be integrated with building management systems, allowing for remote monitoring and control. These systems can provide real-time data on the status of the sprinklers, water pressure, and potential issues, enabling faster response times and more efficient maintenance.

Environmentally Friendly Systems

As sustainability becomes a more prominent concern, there is a growing emphasis on developing fire sprinkler systems that are environmentally friendly. This includes systems that use recycled water or minimize water usage while still providing effective fire suppression.

Enhanced Detection Technologies

New detection technologies, such as advanced heat sensors and infrared cameras, are being integrated into fire sprinkler systems to improve their accuracy and responsiveness. These technologies can detect fires earlier and more reliably, reducing the risk of false alarms and ensuring faster activation of the sprinkler system.

Conclusion

Fire sprinkler systems are a vital component of modern fire protection strategies, offering an effective and reliable means of controlling fires before they can cause significant harm. From their early beginnings in the 19th century to today’s advanced, smart systems, fire sprinklers have proven time and again that they save lives and protect property.

Understanding how these systems work—from the components involved to the types of systems available and their role in fire safety—is crucial for anyone involved in building design, maintenance, or safety planning. As technology continues to evolve, fire sprinkler systems will likely become even more efficient, intelligent, and environmentally friendly, further enhancing their role as a cornerstone of fire protection.

Whether in a residential home, a commercial building, or an industrial facility, fire sprinkler systems provide peace of mind, knowing that a reliable safety mechanism is in place to protect both lives and property from the devastating effects of fire.
