What Causes A Fire Sprinkler To Activate

Fire sprinkler systems are an essential part of fire safety, commonly installed in commercial, industrial, and residential buildings. Their primary goal is to control or extinguish fires in their early stages, reducing property damage and saving lives. While many people know that fire sprinklers activate during fires, the specific mechanisms that trigger them can often be misunderstood. This article will provide a comprehensive explanation of what causes fire sprinklers to activate and how they function.

What Causes A Fire Sprinkler To Activate

How Fire Sprinklers Work

Fire sprinklers operate as part of a broader fire protection system, consisting of a network of pipes installed throughout a building. These pipes, which are typically filled with pressurized water, connect to individual sprinkler heads strategically placed around the building. When a fire occurs, the sprinkler head nearest to the fire detects heat, triggering the system and releasing water to suppress the fire in that specific area.

Contrary to popular belief, fire sprinklers do not all activate at once. Each sprinkler head is designed to respond independently to the heat generated by a fire, allowing water to flow only where it’s needed. This approach minimizes water damage while effectively containing or extinguishing the fire.

Key components of the system include:

  • A water supply source.
  • A network of pipes.
  • Heat-sensitive sprinkler heads.
  • An alarm system to notify occupants of fire.

The Role of Heat in Triggering Fire Sprinklers

Fire sprinklers are triggered by heat, not smoke. Many people mistakenly believe that the presence of smoke alone will activate a sprinkler system, but sprinklers are designed to respond to the intense heat generated by a fire. Typically, fire sprinkler heads are set to activate when the temperature in the area reaches between 135°F and 165°F (57°C and 74°C).

Each sprinkler head contains a heat-sensitive component, often a glass bulb filled with a liquid or a fusible metal link. As the air temperature rises, the liquid inside the bulb expands until it causes the glass to shatter. Similarly, in systems with a fusible link, the metal melts at a specific temperature, causing the valve to open and water to flow.

The heat from a fire quickly rises to the ceiling, where it causes the sprinkler heads to activate. Only the sprinkler heads near the fire will respond, ensuring that water is only released in areas where it’s needed to suppress the flames.

Types of Fire Sprinkler Systems and Their Triggers

Different types of fire sprinkler systems are designed for various environments and fire hazards. Each type operates slightly differently and has its own triggering mechanism. Below are some of the most common types:

Wet Pipe Systems These are the most common fire sprinkler systems. The pipes are constantly filled with water, and when the heat-sensitive element in the sprinkler head is activated, water is immediately released. Wet pipe systems are straightforward, making them highly reliable and widely used in many settings.

Dry Pipe Systems In dry pipe systems, the pipes are filled with pressurized air or nitrogen instead of water. When the sprinkler head is activated, the air is released, and water fills the pipes before being discharged through the activated sprinkler. These systems are typically used in environments where freezing temperatures could cause the pipes to burst if filled with water.

Pre-Action Systems Pre-action systems are designed to reduce the risk of accidental water discharge. These systems require two separate triggers for activation: one from the sprinkler head’s heat-sensitive element and another from a smoke or heat detector. Pre-action systems are often found in places where water damage would be particularly costly, such as data centers or museums.

Deluge Systems Deluge systems are typically used in high-hazard environments where fires can spread quickly, such as chemical plants. In these systems, all sprinkler heads are open, and when a fire is detected, water is released through all sprinklers simultaneously. Deluge systems are triggered by separate fire detection mechanisms, such as heat or smoke detectors, rather than by the sprinkler heads themselves.

False Activations and Misconceptions

While fire sprinklers are effective and reliable, there are some misconceptions and concerns about false activations. One common myth is that sprinklers can be triggered by smoke, which is not true. Sprinklers only respond to heat, meaning they won’t activate due to smoke alone.

However, false activations can still occur, though they are rare. The most common causes of false activations include:

  • Accidental damage to the sprinkler head (e.g., being struck by an object).
  • Extremely high ambient temperatures that simulate fire conditions.
  • Poorly maintained or malfunctioning system components.

By maintaining the fire sprinkler system and ensuring that all parts are functioning properly, the likelihood of false activations can be significantly reduced. Regular inspections can catch any potential issues, such as leaks, corrosion, or faulty sprinkler heads, before they lead to problems.

The Science of Heat Activation

Fire sprinklers work on the principle that heat rises. When a fire starts, it produces hot air that rapidly rises toward the ceiling. As the temperature near the sprinkler heads increases, it triggers the heat-sensitive element inside the sprinkler head. This activation mechanism makes sprinklers highly effective at detecting and responding to fires in specific areas.

There are two main types of sprinkler activation mechanisms:

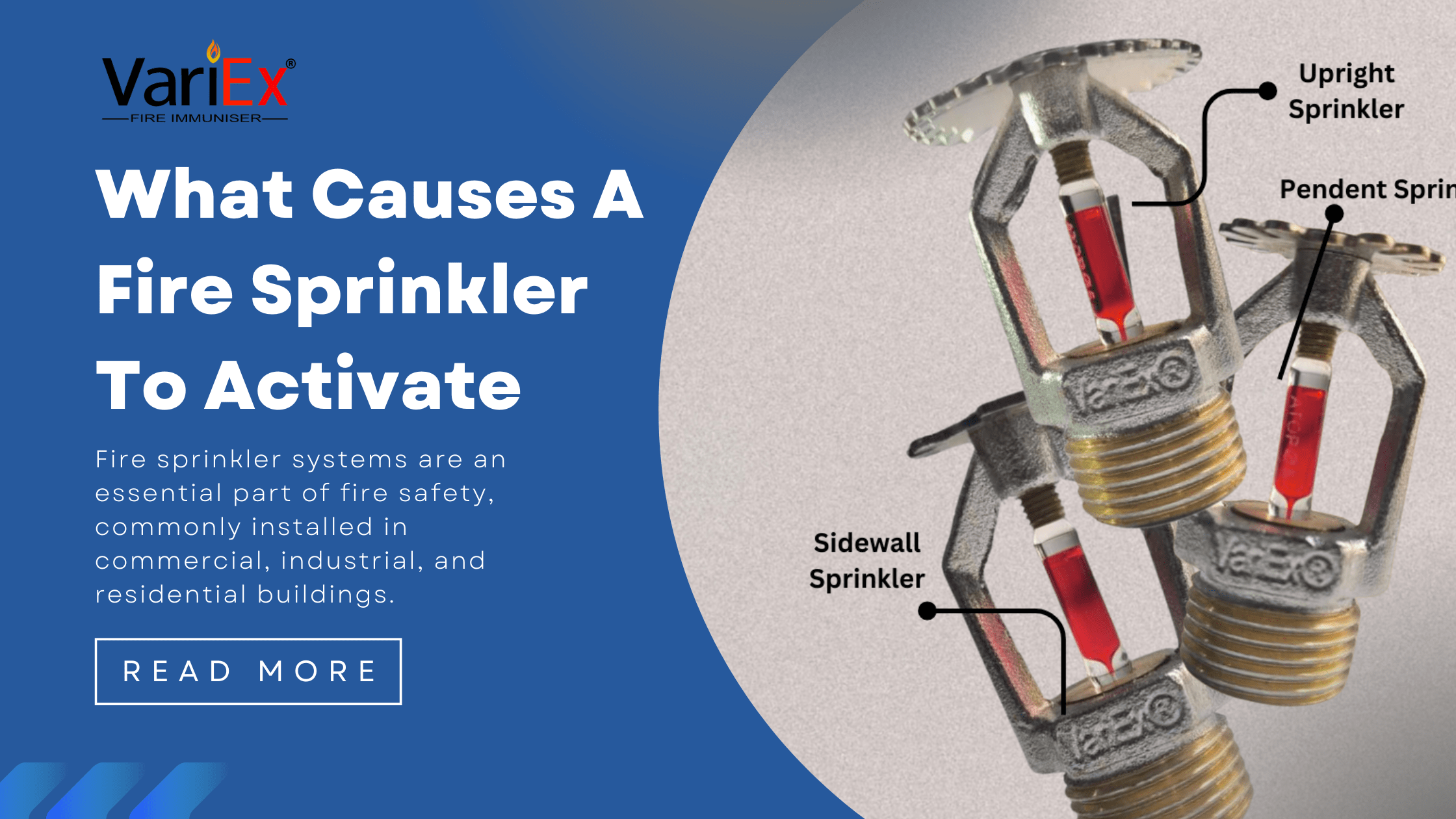

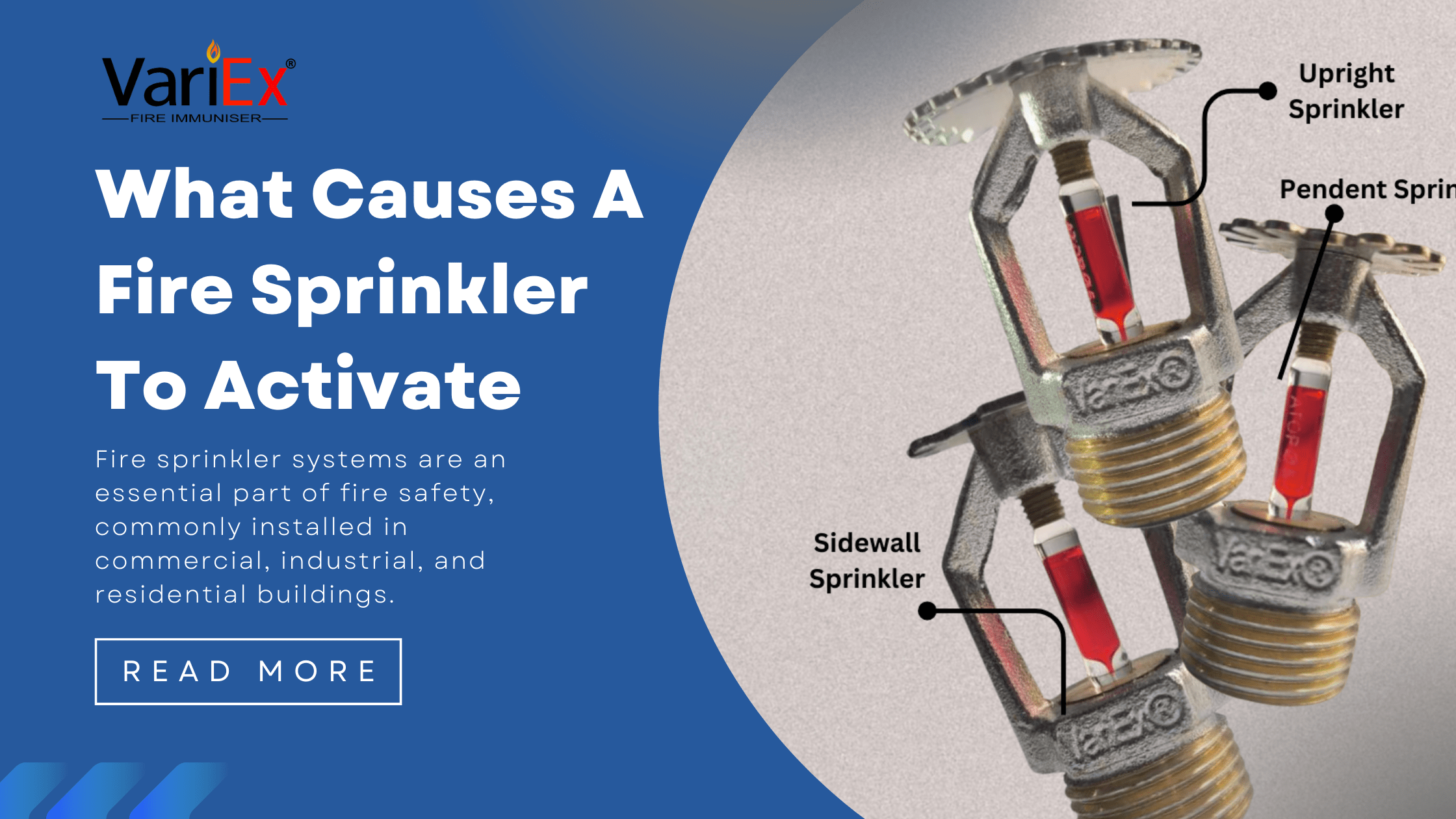

  • Glass Bulb Sprinklers: These sprinkler heads contain a small bulb filled with a liquid, often glycerin-based. As the air temperature increases, the liquid expands and eventually shatters the bulb, allowing water to flow through the sprinkler head.
  • Fusible Link Sprinklers: These sprinklers use a metal link that melts when exposed to high temperatures. Once the link melts, the valve opens, and water is released.

Both of these mechanisms are designed to respond only when the temperature reaches a certain threshold, ensuring that the sprinklers activate only in the presence of a fire.

Maintenance and Inspection of Fire Sprinklers

Proper maintenance and regular inspections are critical for ensuring that fire sprinklers function correctly when needed. Building codes typically require that sprinkler systems be inspected annually by certified professionals to ensure that all components are in working order.

Key maintenance tasks include:

  • Testing the sprinkler heads to ensure they activate at the correct temperature.
  • Checking the water pressure and ensuring that there are no blockages in the pipes.
  • Inspecting for corrosion, leaks, or physical damage to the system.
  • Ensuring that the sprinkler heads are not obstructed by objects, such as furniture or ceiling decorations, which could prevent water from discharging effectively.

By following a regular maintenance schedule, building owners can ensure that their fire sprinkler systems are ready to respond in the event of a fire. This reduces the risk of false activations and ensures that the sprinklers will operate as intended when needed.

Conclusion: The Vital Role of Fire Sprinkler Systems

Fire sprinkler systems play a crucial role in protecting people and property from the dangers of fire. These systems are designed to respond to the intense heat generated by a fire, activating only when necessary to suppress the flames and prevent the fire from spreading. By understanding how fire sprinklers work, what triggers them, and how to maintain them, individuals can ensure that their fire protection systems remain effective and reliable.

Proper installation, regular maintenance, and adherence to fire safety codes are all essential to keeping fire sprinkler systems in working order. With these systems in place, building occupants and owners can have peace of mind, knowing that they are prepared to respond to a fire emergency.




Frequently Asked Questions

Fire sprinklers are triggered by heat, not smoke. When the temperature in the vicinity of the sprinkler head reaches a predetermined threshold (usually between 135°F and 165°F), the heat-sensitive element in the sprinkler head activates, releasing water to suppress the fire.

No, fire sprinklers operate individually. Only the sprinkler heads in the area where the fire is detected will activate. This localized response minimizes water damage and focuses fire suppression where it's needed most.

No, fire sprinklers are designed to activate based on heat, not smoke. While smoke detectors trigger alarms, they do not activate the sprinklers. The sprinkler system responds when the temperature reaches a specific threshold, indicating a fire.

If a sprinkler head is physically damaged, it may cause the system to release water unintentionally. Regular maintenance and caution around sprinkler heads can help prevent accidental activation due to damage.

Fire sprinkler systems should be inspected annually by a certified professional. Regular inspections ensure that the system functions properly, the sprinkler heads are in good condition, and any potential issues, such as leaks or blockages, are addressed.
