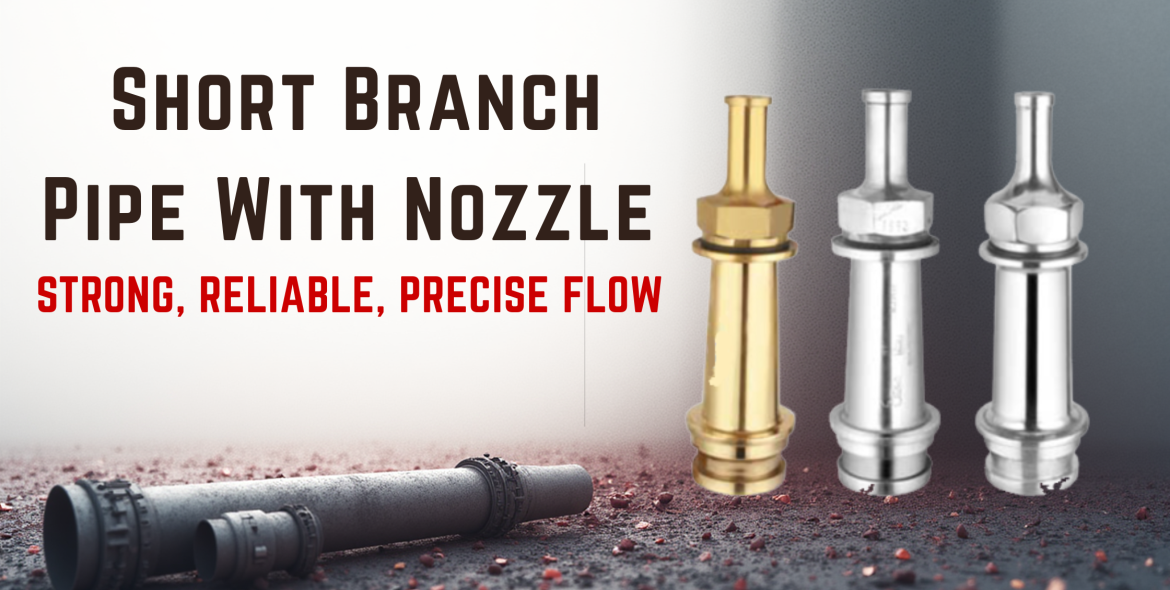

1Short Branch Pipe with Nozzle Stainless Steel – VariEx
A short branch pipe with Nozzle is a vital firefighting component used to control and direct water flow during fire emergencies. Designed to deliver a controlled and adjustable water discharge while maintaining pressure and flow, it is widely used in industrial, commercial, and municipal fire protection systems.

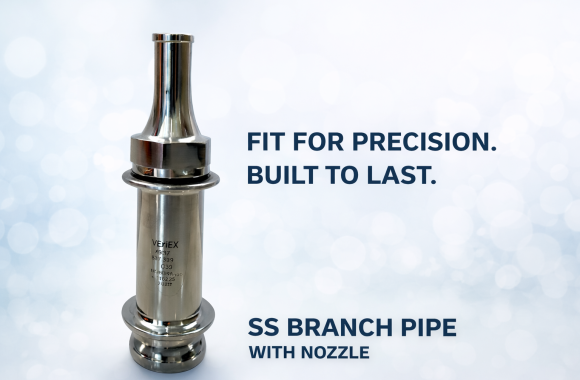

VariEX Short Branch Pipe with Nozzle, conforming to IS: 903, made of stainless steel (SS304) fitted with a 15/20 mm bore nozzle for projecting water in the form of a solid jet. The branch shall have a 63 mm male instantaneous inlet, suitable for use with 63 mm-sized firefighting hoses. H.P. tested to 21 kgf/cm² for 2.5 minutes
Fire Ready with SS Branch Pipe!
Order your VARIEX SS Branch Pipe today.
What is a short branch pipe with a nozzle?
A stainless steel short branch pipe with a nozzle is a firefighting device designed for efficient water delivery during fire incidents. In addition, the attached nozzle allows firefighters to regulate both the flow rate and spray pattern as required. Because stainless steel offers excellent corrosion resistance and durability, this equipment is suitable for harsh industrial and outdoor environments.
Why Select a Branch Pipe Made of Stainless Steel for Fighting Fires?
- Corrosion resistance for coastal, marine, and industrial applications
- High durability under extreme pressure and heat.
- Low maintenance compared to brass or aluminium.
- Increased service life and cost efficiency

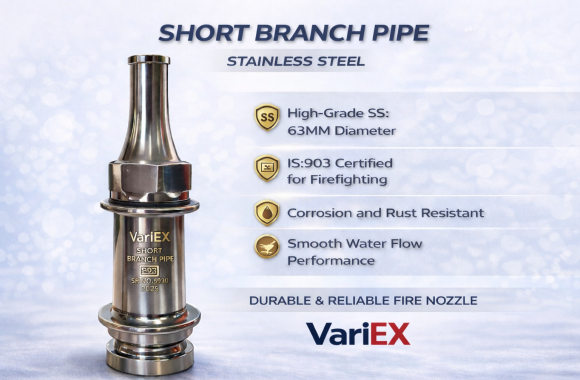

Technical Specs of VariEx Short Branch Pipe
| Feature | Specification |
|---|---|
| Material | Stainless Steel SS304 / SS-316 |
| Standard | IS:903 (ISI Marked) |
| Inlet Size | 63 mm Male Instantaneous |
| Nozzle Bore | 6 / 12 / 16 / 20 / 25 mm |
| Discharge Type | Solid Jet Stream |
| Test Pressure | Up to 21 kgf/cm² |
| Working Pressure | 7–10 kgf/cm² |
| Finish | Polished |
Applications of Short Branch Pipes with Nozzle
Many different industries make extensive use of a short stainless steel branch pipe with a nozzle:
Local fire departments
Systems for preventing industrial fires
Facilities for oil and gas
Offshore and marine platforms
Both residential and commercial structures
Why Choose Variex Short Branch Pipe with Nozzle
Suitable flow rate and pressure
Proper nozzle spray pattern
Meets the local fire safety regulations.
Trusted Variex quality and certifications
Quick Questions
A small firefighting nozzle that generates a concentrated solid jet stream from fire hoses or hydrants.
SS304/SS‑316 provides corrosion resistance, durability, and a longer service life than aluminum or gunmetal.
Yes, it is compliant with IS:903 and ISI certified.
63 mm male instantaneous inlet for quick connection to standard fire hoses.
6 mm, 12 mm, 16 mm, 20 mm, and 25 mm bore sizes.
Yes, it is hydrostatically tested up to ~21 kgf/cm² for safe use.
Fire hydrant systems, industrial setups, municipal fire departments, offshore/marine facilities, and residential developments.
Yes, the lightweight design and instantaneous inlet enable quick deployment.
