How To Replace Fire Sprinkler Head

Fire sprinkler systems are essential for fire safety in commercial, residential, and industrial buildings. They automatically detect and respond to fire incidents, effectively controlling or extinguishing fires to protect lives and property. One of the most critical components of a sprinkler system is the sprinkler head. Over time, sprinkler heads may become damaged, corroded, or outdated, necessitating replacement to maintain the system's functionality and compliance with safety standards.

This comprehensive guide will walk you through the process of replacing a fire sprinkler head. We will cover the types of fire sprinkler heads, the tools and materials needed for replacement, step-by-step instructions, safety precautions, and maintenance tips to ensure your fire sprinkler system remains reliable and effective.

1. Understanding Fire Sprinkler Heads

Before diving into the replacement process, it's essential to understand what fire sprinkler heads are and the different types available. Knowing the type of sprinkler head you have will help you choose the right replacement and follow the correct installation procedures.

a. What Is a Fire Sprinkler Head?

A fire sprinkler head is a key component of a fire suppression system. It is designed to detect heat and, in response, release water to suppress or extinguish a fire. Sprinkler heads are activated individually, meaning only those near the heat source will discharge water, minimizing water damage.

b. Types of Fire Sprinkler Heads

1. Pendant Sprinkler Heads: These are the most common type, hanging down from the ceiling. They discharge water in a circular pattern, effectively covering the area below.

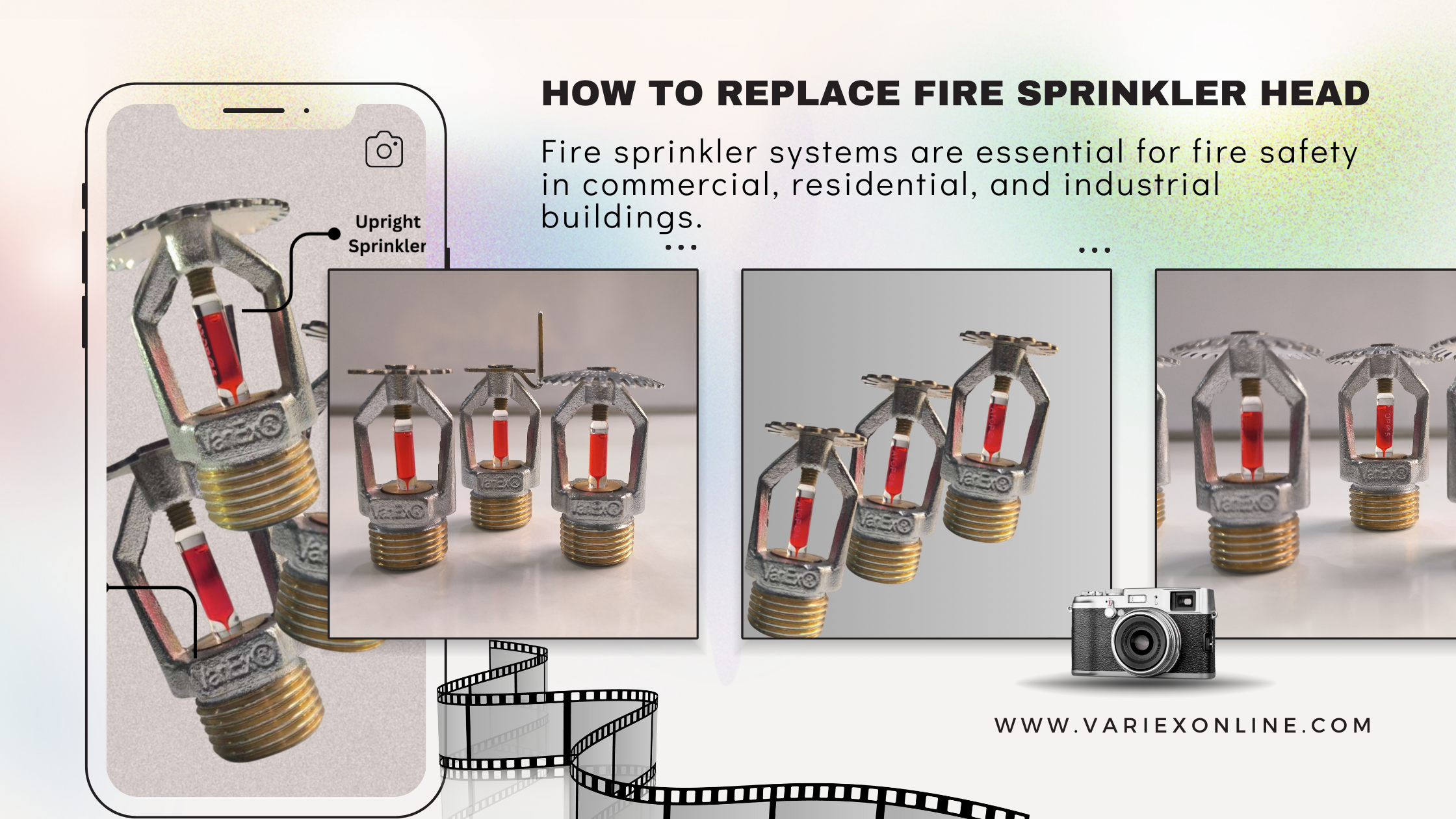

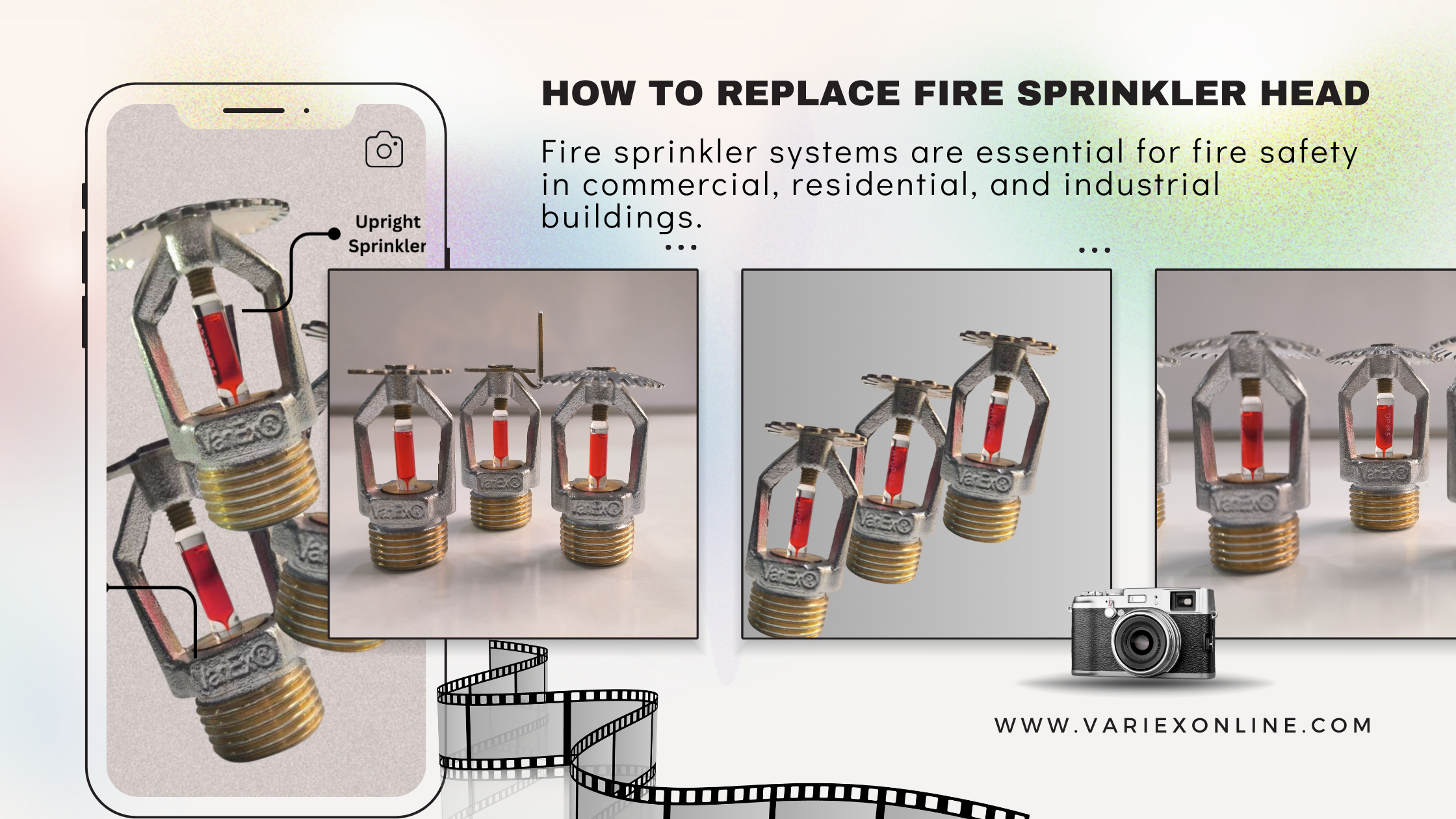

2. Upright Sprinkler Heads: Installed in an upright position, these are typically used in spaces with exposed piping or areas where pendant heads are impractical.
3. Sidewall Sprinkler Heads: These heads are mounted on walls and are designed to discharge water in a half-circle pattern, ideal for narrow spaces or hallways.
4. Concealed Sprinkler Heads: These are hidden behind a decorative cover plate, making them less obtrusive. They are commonly used in residential and commercial settings for aesthetic purposes.
5. Flush Sprinkler Heads: Installed level with the ceiling, flush heads offer a low-profile design, suitable for areas with specific architectural requirements.
6. Specialty Sprinkler Heads: These include high-temperature heads for industrial settings and heads designed for specific fire hazards (e.g., chemical storage).

2. Reasons for Replacing a Fire Sprinkler Head

Several factors may necessitate the replacement of a fire sprinkler head:

• Physical Damage: Sprinkler heads can be accidentally struck, causing damage or misalignment.
• Corrosion: Over time, exposure to moisture, chemicals, or environmental factors can corrode sprinkler heads, affecting their performance.
• Aging and Wear: Sprinkler heads have a lifespan, typically ranging from 20 to 50 years. Older heads may not function correctly.
• False Activation: If a head has accidentally activated, it may need replacement to reset the system.
• System Upgrades: Changes in building layout or fire protection requirements may necessitate installing new sprinkler heads with different specifications.
• Compliance with Codes: Local fire safety codes may require replacement to meet updated standards or regulations.

3. Tools and Materials Needed for Replacement

Before replacing a fire sprinkler head, gather the necessary tools and materials to ensure a smooth and safe process. Here’s a checklist of what you will need:

• Replacement Sprinkler Head: Ensure it matches the type, size, and specifications of the existing head.
• Sprinkler Head Wrench: A specialized tool designed to fit the sprinkler head for safe removal and installation.
• Pipe Wrench or Adjustable Wrench: For loosening or tightening connections.
• Teflon Tape or Pipe Dope: Used to seal the threads and prevent leaks.
• Bucket or Towels: To catch any water that may leak during the replacement process.
• Safety Gear: Safety goggles, gloves, and a helmet for protection.
• Ladder: If the sprinkler head is installed at a high location.
• Water Pressure Gauge: To check the system's pressure before and after replacement.

4. Preparing for the Replacement

Preparation is key to safely and effectively replacing a fire sprinkler head. Follow these steps before starting the replacement process:

a. Turn Off the Water Supply

• Locate the main water supply valve for the sprinkler system and turn it off. This will prevent water from flowing when you remove the sprinkler head.
• Notify building occupants or relevant personnel that the fire sprinkler system will be temporarily out of service.

b. Drain the Sprinkler System

• Open the drain valve to release water from the system. This step helps minimize water leakage during the replacement.
• Use a bucket or towels to catch any residual water that may drain out.

c. Deactivate the Fire Alarm System

• If the sprinkler system is connected to a fire alarm, temporarily deactivate it to prevent false alarms during the replacement process.
• Notify the monitoring company or fire department that the system will be offline for maintenance.

d. Inspect the Replacement Head

• Check that the replacement sprinkler head matches the type, temperature rating, and response time of the existing head.
• Inspect the new head for any defects or damage before installation.

5. Step-by-Step Guide to Replacing a Fire Sprinkler Head

Now that you’ve prepared the area and gathered your tools, follow these step-by-step instructions to replace the fire sprinkler head:

Step 1: Position the Ladder Safely

• Place the ladder securely under the sprinkler head you need to replace. Make sure the ladder is stable and positioned on a flat surface.
• Wear safety gear, including gloves, goggles, and a helmet, to protect yourself from debris or water spray.

Step 2: Remove the Old Sprinkler Head

• Use a sprinkler head wrench to grip the base of the sprinkler head. Turn the wrench counterclockwise to loosen and remove the head.
• Be cautious as you remove the head, as some residual water may still be in the pipe. Have a bucket or towels ready to catch any water.
• Inspect the exposed pipe threads for damage or corrosion. If the threads are damaged, they may need repair before installing the new head.

Step 3: Prepare the Replacement Sprinkler Head

• Wrap Teflon tape or apply pipe dope to the threads of the new sprinkler head. This will help create a watertight seal and prevent leaks.
• Ensure the new head is free from dirt or debris that could obstruct its operation.

Step 4: Install the New Sprinkler Head

• Align the new sprinkler head with the exposed pipe threads. Carefully screw the head onto the pipe by hand, turning it clockwise.
• Use the sprinkler head wrench to tighten the head securely. Do not overtighten, as this can damage the head or the pipe.
• Make sure the head is correctly oriented, especially if it is a sidewall or directional head. The water discharge pattern should be appropriate for the area being protected.

Step 5: Turn On the Water Supply

• Slowly turn the main water supply valve back on. Check for any leaks around the newly installed sprinkler head.
• If you notice any leaks, turn off the water supply and tighten the head further or apply additional Teflon tape.
• Once no leaks are detected, allow the system to fill and pressurize fully.

Step 6: Test the Sprinkler System

• Conduct a water pressure test using a gauge to ensure the system is operating correctly. The pressure should meet the specifications outlined in the building's fire protection plan.
• Reactivate the fire alarm system and notify the monitoring company or fire department that maintenance is complete.

6. Safety Precautions

Replacing a fire sprinkler head involves working with pressurized water systems and potentially hazardous conditions. Follow these safety precautions to minimize risks:

• Use the Right Tools: Only use tools designed for fire sprinkler systems, such as a sprinkler head wrench, to avoid damaging the components.
• Wear Safety Gear: Protect your eyes, hands, and head with safety goggles, gloves, and a helmet.
• Work on Stable Surfaces: Ensure ladders are stable and secure. Never overreach or position yourself in an unstable manner.
• Turn Off the Water Supply: Always turn off the water supply before removing a sprinkler head to avoid uncontrolled water discharge.
• Notify Relevant Personnel: Inform building occupants and relevant personnel that the sprinkler system will be offline for maintenance.

7. Post-Replacement Maintenance Tips

To ensure the long-term reliability of your fire sprinkler system, follow these maintenance tips:

a. Regular Inspections

• Schedule routine inspections of the entire sprinkler system to check for signs of wear, corrosion, or damage.
• Inspect sprinkler heads for dust, dirt, or obstructions that could affect their operation.

b. Testing

• Conduct regular flow tests to ensure the system delivers adequate water pressure and flow.
• Perform functional tests on individual sprinkler heads to confirm they activate correctly.

c. Cleaning and Maintenance

• Keep sprinkler heads clean and free from dust or debris. Use a soft brush or compressed air to remove any buildup.
• Check and replace any corroded or damaged components promptly to prevent system failure.

d. Record Keeping

• Maintain detailed records of all inspections, tests, and maintenance activities. This documentation is essential for compliance with fire safety codes and insurance requirements.
• Record the date of replacement for each sprinkler head to track their age and condition.

8. Common Mistakes to Avoid

When replacing fire sprinkler heads, avoid these common mistakes that can compromise safety and effectiveness:

a. Using the Wrong Type of Sprinkler Head

• Always use a replacement sprinkler head that matches the type, temperature rating, and specifications of the existing head. Mismatched heads can result in ineffective fire suppression.

b. Overtightening the Sprinkler Head

• Overtightening can damage the sprinkler head or the pipe threads, leading to leaks or system failure. Use the sprinkler head wrench to secure the head firmly, but do not force it.

c. Failing to Turn Off the Water Supply

• Forgetting to turn off the water supply before removing a sprinkler head can lead to uncontrolled water discharge, potential flooding, and injury.

d. Neglecting Safety Gear

• Always wear safety goggles, gloves, and a helmet to protect yourself from water spray, falling debris, or other hazards.

e. Not Testing the System After Replacement

• Failing to test the sprinkler system after replacing a head can leave you unaware of leaks, pressure issues, or other problems. Always conduct a full test to verify proper operation.

Conclusion

Replacing a fire sprinkler head is a crucial maintenance task to ensure the continued effectiveness of your fire suppression system. By understanding the different types of sprinkler heads, following the proper preparation and replacement steps, and adhering to safety precautions, you can perform this task safely and efficiently. Regular maintenance and inspections will help keep your fire sprinkler system in top condition, providing reliable protection for your building and its occupants.

Remember to consult fire safety codes, manufacturers' guidelines, and professional advice if you are unsure about any aspect of sprinkler head replacement. Proper care and maintenance of your fire sprinkler system can significantly impact fire safety and property protection, making it a critical responsibility for building owners and maintenance personnel.
